EMF Views User Guide

Overview

EMF Views is a tool that enables to combine and refine/augment several EMF-based models into views. These views behave as regular models: you can navigate, query and transform them as you would do with any regular model. This comes in handy when you want to deal with several related models, for instance.

Views can filter any element from its contributing models. This can be used to create views focused on particular aspects of related models. Filters also enable a form of access control: one can create views that hide sensitive information coming from one or more models.

Views can also augment the contributing models with new elements, attributes or associations. This is useful for instance when combining related models: you can add new associations that link related classes together, allowing you to navigate or query the view more naturally.

Views can be created interactively via eview and eviewpoint definition files, or can be created programmatically. Moreover, EMF Views currently comes with two DSLs that ease the definition of views: VPDL and MEL.

Tutorials

These tutorials will take you through the main features of EMF Views.

Creating a view manually

We will create a view linking two related models representing books.

In order to create a view, you need the following:

1. Metamodels. These can be given as Ecore files, or through the namespace URI if the packages are loaded as plugins.
2. Models. These can be given in any serialization format supported by EMF (usually XMI).
3. A viewpoint. This defines the metamodel of the view. It is specified through an eviewpoint file.
4. An eview file which describes the view.

First, unpack the emfviews-tutorial example. Here is what the file hierarchy should look like:

.
├── metamodels
│   ├── Book.ecore
│   └── Publication.ecore
├── models
│   ├── book.xmi
│   └── publication.xmi
├── viewpoints
│   ├── publicationsAndBooks.eviewpoint
│   └── publicationsAndBooks.xmi
└── views
    ├── allChapters.ecl
    ├── allChapters.eview
    ├── firstChapter.ecl
    └── firstChapter.eview

This is one common way to organize views that are created using files, but it is not mandatory to follow this structure.

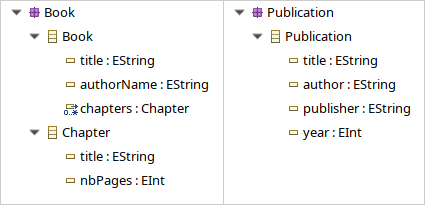

The metamodels folder contains the Ecore files for our two metamodels, Book and Publication.

The Book metamodel has details about each chapter, while the Publication has more information about the publisher and publishing date. This is a simple example of two metamodels with overlapping and complementary information. The view we will create will bring all this information under a single (virtual) metamodel.

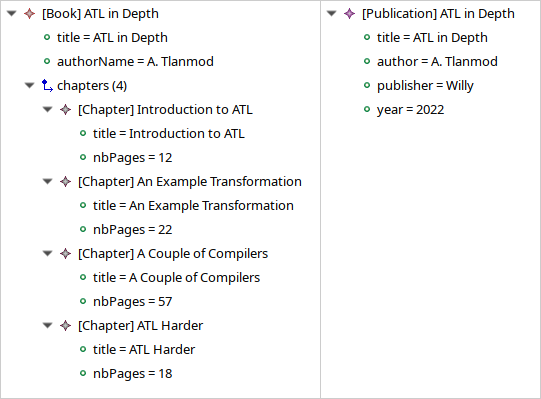

The models folder contains two serialized models in XMI format that conform to these metamodels. Here are the contents of book.xmi (left) and publication.xmi (right):

They both model the same book. In this example, there is only one element for simplicity. In realistic situation, each model may contain several books or publications. Our view will work the same with any number of elements.

To define the view, we must first define a viewpoint, which acts as a (virtual) metamodel for the view. Let us look at the file hierarchy again:

├── viewpoints
│   ├── publicationsAndBooks.eviewpoint
│   └── publicationsAndBooks.xmi

The viewpoints folder contains two files. Let us focus on the publicationsAndBooks.eviewpoint file which defines the viewpoint, and is defined as:

contributingMetamodels=publication::../metamodels/Publication.ecore,\
		       book::../metamodels/Book.ecore
weavingModel=publicationsAndBooks.xmi

(See eview and eviewpoint files for the full syntax and valid configuration keys of eviewpoint files.)

The first two lines list the contributing metamodels. These are the two metamodels we are concerned with. In this case, we give relative URIs to the Ecore files in the metamodels folder. The paths are prefixed by an alias which will be used to match metamodels to models in the eview file.

The third line specifies the weaving model. The weaving model describes how the viewpoint is constructed: it contains filters that select or exclude elements from the contributing metamodels, and it describes new elements that are to be added to the viewpoint. If you omit the weavingModel property, no elements are filtered or added.

Let’s try it now. Remove or comment (# begins a line comment) the weavingModel line, then save the file. You have to open the viewpoint in text mode (Right click → Open With → Text Editor).

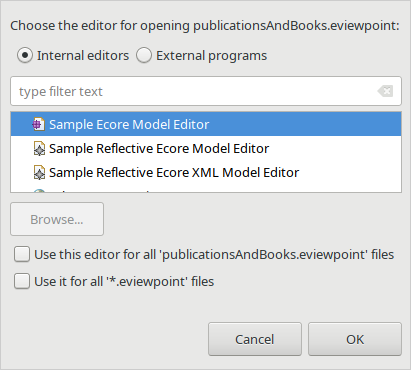

After you have made the change, you want to open the eviewpoint file in a model editor. The Sample Ecore Model Editor and the MoDisco Model Browser should both be able to do so. Right click → Open With → Other..., and in the dialog select Sample Ecore Model Editor then click OK:

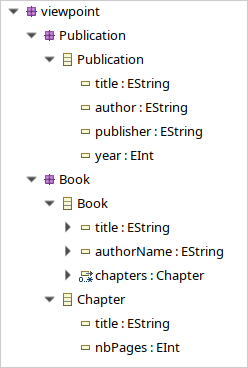

Here is what you should see:

This metamodel combines, under the same viewpoint package, our two metamodels Publication and Book. This metamodel is purely virtual: the packages Publication and Book, and all their elements, are proxies to the actual elements from the contributing metamodels.

Note that the Publication package comes before Book because that is the order we specified in the contributingMetamodels line in the eviewpoint file.

Let us restore the weavingModel line. First, close the Sample Ecore Model Editor view of the eviewpoint. Then, restore or uncomment the weavingModel line in the eviewpoint by opening it with the Text Editor (or reuse the Text Editor tab if you had not closed it). Save the eviewpoint file, and open it up with the Sample Ecore Model Editor once more.

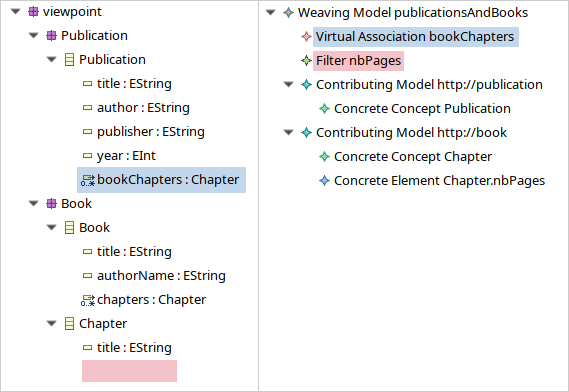

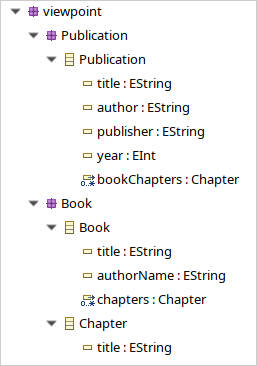

Here is what you should get now:

There are two differences with the previous viewpoint: there is a new bookChapters association in the Publication class, and the Chapter.nbPages attribute has been filtered out. The bookChapters association enhances the Publication metamodel by allowing us to navigate the chapters from a Publication instance. A Publication in this viewpoint would have all the information of the Book instance, and more.

Note that the Chapter class is part of the Book package (it comes from the Book metamodel), but it is the target class of an association of the Publication package. Combining both metamodels in the viewpoint allows us to create inter-metamodel associations, since they are now part of the same virtual metamodel.

If we open the weaving model publicationsAndBooks.xmi with the Sample Ecore Model Editor, we can see that it contains exactly these two changes. Here is the viewpoint on the left with the weaving model on the right. The changes made by the weaving model to the viewpoint are highlighted:

Now that we have a viewpoint, all that is left is the view itself. Let us take another look at the file hierarchy:

└── views
    ├── allChapters.ecl
    ├── allChapters.eview
    ├── firstChapter.ecl
    └── firstChapter.eview

In the views folder, two views are defined: allChapters and firstChapter. Let us focus on allChapters for now. If we look inside allChapters.eview:

contributingModels=publication::../models/publication.xmi,book::../models/book.xmi
viewpoint=../viewpoints/publicationsAndBooks.eviewpoint
matchingModel=allChapters.ecl

(Again, see eview and eviewpoint files for a complete description of eview files.)

The contributingModels line point to the model resources which contribute to the view. Note that the order of the contributing models does not have to match the order of the contributingMetamodels line in the eviewpoint file. Metamodels from the eviewpoint file are matched to models using the prefix alias: pub is the alias for the Publication metamodel, and using the same alias indicates that the publication.xmi model conforms to it. The alias is also used by ECL files, as seen below.

The viewpoint line is a relative path to the eviewpoint file. In order to define a view, we need to give it a metamodel, which is a viewpoint.

Finally, the matchingModel line is a path to an Epsilon Comparison file. The matching model contains rules that are used by EMF Views to construct a weaving model for the view.

Let us look at this ECL file now:

rule bookChapters
match p : publication!Publication
with  c : book!Chapter
{
  compare
  {
    return p.title = c.eContainer().title
       and p.author = c.eContainer().authorName;
  }
}

It describes a rule to populate the virtual association bookChapters. It considers each publication p from the (concrete) Publication metamodel against each chapter of the (concrete) Book metamodel; in other words, a Cartesian product Publication × Book. For each pair (p,c), if the predicate in compare is true, then the matching elements are part of the association bookChapters.

Here, if we have a book and a publication that refer to the same ouvrage, then we want to add all chapters of the book to the association. Thus, the predicate checks that the title of the publication is the same as the book’s title, and that they both have the same author, since that is all the common information between the two metamodels.

Note that for our two particular models which describe the same book, the predicate will always return true. Hence, we could have written the rule trivially:

...
  compare
  {
    return true;
  }
}

But the former version will work with models containing more books and publications.

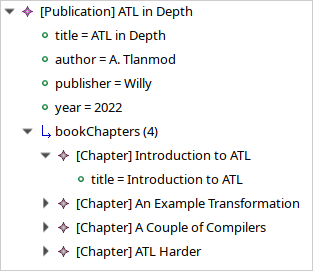

When we open the allChapters.eview file with the MoDisco Model Browser (Right click → Open With → Other..., and select MoDisco Model Browser then click OK), we can see that the bookChapters associations allows us to navigate the chapters from the Book model:

We also can see that the nbPages attribute is absent from the chapters, because it has been filtered out from the metamodel.

Now, we have defined a view that combines the Book and Publication models. But we can define multiple views for the same viewpoint. Take a look at firstChapter.eview:

contributingModels=publication::../models/publication.xmi,\
		   book::../models/book.xmi
viewpoint=../viewpoints/publicationsAndBooks.eviewpoint
matchingModel=firstChapter.ecl

The only difference with allChapters.eview is the matching model. For this view, we want only the first chapter of a matching book to be added to the new bookChapters association. Consequently, in firstChapter.ecl, the predicate is:

return p.title = c.eContainer().title
   and c = c.eContainer().eContents().first();

The right-hand part of the condition only matches if the chapter c is the first one of the book it is part of.

As a result, when we open firstChapter.eview with the MoDisco Model Browser, only one chapter is part of the bookChapters association:

And that’s it! We have created one viewpoint combining two metamodels, then we created two views combining two models using this viewpoint. Note that while this method of creating views with eviewpoint and eview files is suitable for creating small-scale views interactively, EMF Views offers two other methods to create views: programmatically and using VPDL.

In the next two sections, we will show how we can filter other elements in the viewpoint, and how we can add new virtual elements.

Creating a view with VPDL

Writing a VPDL file

VPDL, standing for ViewPoint Description Language, is a domain-specific language for easing the specification of viewpoints and the creation of corresponding views using EMF Views. The syntax of VPDL is inspired by SQL’s SELECT statement.

Instead of manually creating eviewpoint and eview files, you write a single vpdl file which describes the viewpoint and the view at the same time. Here is a VPDL file recreating the firstChapter view of the previous section:

create view publicationsAndBooks as

select publication.Publication.*,
       publication.Publication join book.Chapter as firstChapter,
       book.Book.*,
       book.Chapter.title,

from 'http://publication' as publication,
     'http://book' as book,

where s.title = t.eContainer().title
      and t = t.eContainer().eContents().first()
      for firstChapter

(See VPDL for a description of the full syntax.)

The first line create view specifies the name of the viewpoint. This name is used for generating the eviewpoint, eview and xmi weaving model file.

With the select clause, you explicitly select the classes and features from the contributing metamodels that will appear in the viewpoint. The select clause essentially specifies the viewpoint’s weaving model, albeit in plain text. Here with publication.Publication.* we say that we want all features of the publication.Publication class in the viewpoint, and by selecting only book.Chapter.title from book.Chapter, we exclude the nbPages attribute. The select clause is a whitelist, so if we don’t include the book.Book.* line for instance, the resulting viewpoint would not let us navigate Book instances, since there would be no visible features.

The line:

publication.Publication join book.Chapter as firstChapter,

tells EMF Views to create a virtual association from Publication to Chapter called firstChapter. This is the same as the bookChapter association of the previous section.

The from clause simply maps the namespace URIs of the contributing metamodels to aliases used in the select clause.

Lastly, the where clause specifies, for each new association, how to match elements from contributing models in the view. This is used to generate the matching model as an ECL file. Here, we use the same predicate as before, but this time s and t refer respectively to the source (Publication) and target (Chapter) of the association.

Using a VPDL file in Eclipse

To use a VPDL file, your project need to be configured as an Xtext project in Eclipse. If you create a new project and add a vpdl file in it, Eclipse should prompt you to configure it as an Xtext project. Otherwise in the outline, Right click on the project → Configure → Convert to Xtext project.

Once the project is configured, whenever you save the vpdl file Xtext should generate three files: the eviewpoint, the xmi weaving model, and the ecl matching model.

If you unpack the vpdl-tutorial example, here is how the file hierarchy looks like after we save the publicationAndBooks.vpdl file:

.
├── src
│   └── publicationsAndBooks.vpdl
├── src-gen
│   ├── publicationsAndBooks.ecl
│   ├── publicationsAndBooks.eviewpoint
│   └── publicationsAndBooks.xmi
└── views
    └── firstChapter.eview

All the generated files are in the src-gen directory.

To create the view however, we still need an eview file. VPDL does not create one for a view (yet). You just have to point to the generated files, and specify the contributing models you want to use. Here is the definition of firstChapter.eview:

viewpoint=../src-gen/publicationsAndBooks.eviewpoint
contributingModels=\
  publication::../../emfviews-tutorial/models/publication.xmi,\
  book::../../emfviews-tutorial/models/book.xmi
matchingModel=../src-gen/publicationsAndBooks.ecl
weavingModel=publicationAndBooks.xmi

Opening firstChapter.eview using the MoDisco Model Browser, we get the same result as before, the difference being that this time the new association is more accurately called firstChapter:

Creating a view programmatically

In some situations, you may want to create views without touching the filesystem. The EMF Views API lets you create views purely in memory, without creating eview files or vpdl files.

Here is a standalone example of creating a minimal view on the UMLPackage using the API:

// 1. Create viewpoint
Viewpoint viewpoint = new Viewpoint(Arrays.asList(UMLPackage.eINSTANCE));

// 2. Create model
UMLFactory f = UMLFactory.eINSTANCE;
Component C1 = f.createComponent();
C1.setName("Comp1");
Component C2 = f.createComponent();
C2.setName("Comp2");

Resource model = new ResourceImpl();
model.getContents().addAll(Arrays.asList(C1, C2));

// 3. Create view
View view = new View(viewpoint, Arrays.asList(model));

// 4. Navigate the view
for (EObject o : view.getVirtualContents()) {
  System.out.println(o.eGet(o.eClass().getEStructuralFeature("name")));
}

To create a Viewpoint, we must provide a list of contributing metamodels as instances of EPackage; here we give the UMLPackage metamodel. We do not provide a weaving model, so a default empty weaving model is used instead. With an empty weaving model, no elements are filtered out from the contributing metamodels, and no new elements are added.

Then we build the model using the UMLFactory. We keep it simple for the purposes of example: just two Component instances. In a realistic situation, this model could come from anywhere, as long as we have a resource to provide to the View constructor.

The third step is to create the view by passing the viewpoint and a list of contributing models as instances of Resource to View. Here we pass the model resource we just constructed. The third optional argument to the View constructor is the view weaving model. As for Viewpoint, an empty weaving model is used if unspecified.

Finally, we navigate the view to print the name of the components inside it. Since we have used empty weaving models, the view is identical in content to the model. Running this snippet will output the names of the two components:

Comp1
Comp2

Caveats

Note that we have to use the reflective EMF API when navigating views, because there is no corresponding generated code. View elements are always dynamic objects. In other words, it would be tempting, but wrong, to navigate the view as follows:

for (EObject o : view.getVirtualContents()) {
  Component c = (Component) o;   // this cast will fail
  System.out.println(c.getName());
}

This code will compile, but will raise a ClassCastException at runtime. For the same reasons, testing for instances with instanceof will not work with the current version of EMF Views:

for (EObject o : view.getVirtualContents()) {
  if (o instanceof Component) {  // this can never be true
    ...
  }
}

For testing instances, you have to use the reflective API. But be careful about using the metaclasses from viewpoint and not from the original UMLPackage. The following is wrong:

EClassifier comp = UMLPackage.eINSTANCE.getComponent();
for (EObject o : view.getVirtualContents()) {
  if (comp.isInstance(o)) {      // this test can still never be true
    ...
  }
}

The view conforms to the viewpoint, and elements of the viewpoint refer to elements from UMLPackage, but they are not equal. The correct way of finding Component instances is by getting the Component metaclass from the virtual UMLPackage:

EPackage vUML = viewpoint.getRootPackage().getESubpackages().get(0);
EClassifier comp = vUML.getEClassifier("Component");
for (EObject o : view.getVirtualContents()) {
  if (comp.isInstance(o)) {
    ...
  }
}

Creating a weaving model programmatically

We have seen how to create viewpoints and views programmatically, but only with empty weaving models. Let’s recreate the publications and books view from the other tutorials, but this time without creating any eview, eviewpoint or vpdl file.

For simplicity, we’ll assume the Book and Publication metamodels and models are already loaded.

EPackage Book = ... // load the Book.ecore metamodel
EPackage Publ = ... // load the Publication.ecore metamodel

Resource book = ... // load the book.xmi model
Resource publ = ... // load the publication.xmi model

// 1. Build the viewpoint weaving model
VirtualLinksFactory f = VirtualLinksFactory.eINSTANCE;
WeavingModel WM1 = f.createWeavingModel();
WM1.setName("publicationsAndBooks");

ConcreteConcept source;
{
  ContributingModel cm = f.createContributingModel();
  WM1.getContributingModels().add(cm);
  cm.setURI("http://publication");
  ConcreteConcept cc = f.createConcreteConcept();
  cm.getConcreteElements().add(cc);
  cc.setPath("Publication");
  source = cc;
}

ConcreteConcept target;
ConcreteElement nbPages;
{
  ContributingModel cm = f.createContributingModel();
  WM1.getContributingModels().add(cm);
  cm.setURI("http://book");
  ConcreteConcept cc = f.createConcreteConcept();
  cm.getConcreteElements().add(cc);
  cc.setPath("Chapter");
  target = cc;
  ConcreteElement ce = f.createConcreteElement();
  cm.getConcreteElements().add(ce);
  ce.setPath("Chapter.nbPages");
  nbPages = ce;
}

{
  VirtualAssociation va = f.createVirtualAssociation();
  WM1.getVirtualLinks().add(va);
  va.setName("bookChapters");
  va.setUpperBound(-1);
  va.setSource(source);
  va.setTarget(target);
}

{
  Filter fi = f.createFilter();
  WM1.getVirtualLinks().add(fi);
  fi.setName("nbPages");
  fi.setTarget(nbPages);
}

// 2. Build the viewpoint
Viewpoint viewpoint = new Viewpoint(Arrays.asList(Book, Publ), WM1);

// 3. Build the view weaving model
WeavingModel WM2 = f.createWeavingModel();
WM2.setName("publicationsAndBooks");

{
  ContributingModel cm = f.createContributingModel();
  WM2.getContributingModels().add(cm);
  cm.setURI("http://publication");
  ConcreteConcept cc = f.createConcreteConcept();
  cm.getConcreteElements().add(cc);
  EObject o = publ.getContents().get(0);
  cc.setPath(publ.getURIFragment(o));
  source = cc;
}

{
  ContributingModel cm = f.createContributingModel();
  WM2.getContributingModels().add(cm);
  cm.setURI("http://book");
  ConcreteConcept cc = f.createConcreteConcept();
  cm.getConcreteElements().add(cc);
  EObject o = book.getContents().get(0).eContents().get(0);
  cc.setPath(book.getURIFragment(o));
  target = cc;
}

{
  VirtualAssociation va = f.createVirtualAssociation();
  WM2.getVirtualLinks().add(va);
  va.setName("bookChapters");
  va.setSource(source);
  va.setTarget(target);
}

// 4. Build the view
View view = new View(viewpoint, Arrays.asList(book, publ), WM2);

// 5. Navigate the new association in the view
EObject vpubl = view.getVirtualContents().get(1);
System.out.println(vpubl.eGet(vpubl.eClass().getEStructuralFeature("title")));

EStructuralFeature assoc = vpubl.eClass().getEStructuralFeature("bookChapters");
EObject vchapter = ((EList<EObject>) vpubl.eGet(assoc)).get(0);
System.out.println(
  vchapter.eGet(vchapter.eClass().getEStructuralFeature("title")));

As you can see, creating weaving model programmatically can be quite tedious, but this is the option that gives you the most control. In a real program, you may want to create helper functions that take care of the boilerplate, especially when building weaving models for views which can contain many elements. Here, thankfully, we just had to add one chapter to the virtual association.

When executing this snippet, we get the following output:

ATL in Depth
Introduction to ATL

Querying a view with OCL

To query a view interactively, you can use the standard OCL console. Refer to the OCL documentation on how to bring up the OCL console. Once you have a console open, you can query a view using OCL expressions:

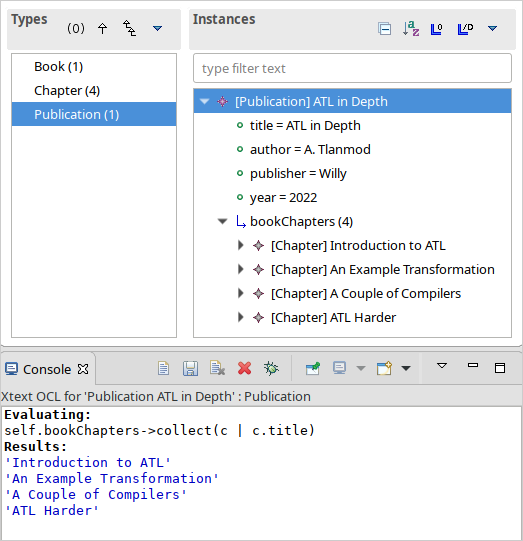

In this figure, we see the allChapters.eview view open in the MoDisco Model Browser, with the Xtext OCL console on the lower half. When the [Publication] ATL in Depth object is selected in MoDisco, it becomes the context object (self) for the OCL console, as indicated by the text Xtext OCL for 'Publication…'.

In the console, we can see the results of executing the OCL query:

self.bookChapters->collect(c | c.title)

which collects the titles of all the chapters in this publication in an set, using the bookChapters virtual association.

Programmatic OCL queries

You can also use OCL programmatically. Here is an example of code using the OCL Pivot API which the run the same query as above:

// Initialize EMF
Map<String, Object> map = Resource.Factory.Registry.INSTANCE
  .getExtensionToFactoryMap();
map.put("xmi", new XMIResourceFactoryImpl());
map.put("ecore", new EcoreResourceFactoryImpl());
map.put("eview", new EmfViewsFactory());

// Make sure the weaving model package is loaded
VirtualLinksPackage.eINSTANCE.eClass();

// Register EclDelegate as handler for ".ecl" weaving models
VirtualLinksDelegator.register("ecl", new EclDelegate());

// Initialize OCL
OCL ocl = OCL.newInstance(EcoreEnvironmentFactory.INSTANCE);
OCLHelper oclHelper = ocl.createOCLHelper();

// Load the view
Resource view  = new ResourceSetImpl()
  .getResource(URI.createURI("allChapters.eview"), true);
view.load(null);

// Set the query context
EObject root = view.getContents().get(0);
EObject context = root.eClass();
oclHelper.setContext(context);

// Create the query
Query query = ocl.createQuery(
  oclHelper.createQuery("self.bookChapters->collect(c | c.title)"));

// Evaluate and print result
System.out.println("Result: " + query.evaluate(root));

Running that program yields:

Result: [Introduction to ATL,
         An Example Transformation,
         A Couple of Compilers,
         ATL Harder]

Transforming a view with ATL

As views appear as regular EMF models to EMF-compatible tools, you can use a view as an input to a model-to-model transformation, or to a model-to-text one (see the next tutorial).

Creating an HTML report from a view

To create an HTML report from a view, we will use the Epsilon Generation Language.

In the view-to-html-tutorial, you can find the following files:

.
├── metamodels
│   ├── Book.ecore
│   └── Publication.ecore
├── models
│   ├── book.xmi
│   └── publication.xmi
├── templates
│   ├── publicationsAndBooks.egl
│   └── publicationsAndBooks.launch
├── viewpoints
│   ├── publicationsAndBooks.eviewpoint
│   └── publicationsAndBooks.xmi
└── views
    ├── allChapters.ecl
    └── allChapters.eview

These are the same files from the emfviews-tutorial, except there’s a new templates folder that contains an EGL file and a launch configuration.

The EGL file is rather straightforward:

[% for (p in Publication.allInstances()) { %]
<p>
  <i>[%=p.title%]</i>, [%=p.author%], [%=p.publisher%] ([%=p.year%])<br>
  Contents:
  <ol>
  [% for (c in p.bookChapters) { %]
    <li>[%=c.title%]</li>
  [% } %]
  </ol>
</p>
[% } %]

(Refer to the EGL documentation for the language syntax and examples.)

This example goes through all publications in the view, and for each it lists all its attribute and all its chapters.

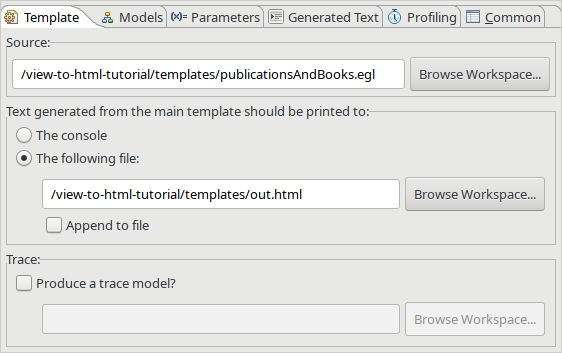

To execute this template, we need a launch configuration. One is provided in the templates folder; you should be able to import it. Otherwise, you can create a new EGL Generator launch configuration, and configure it as follows:

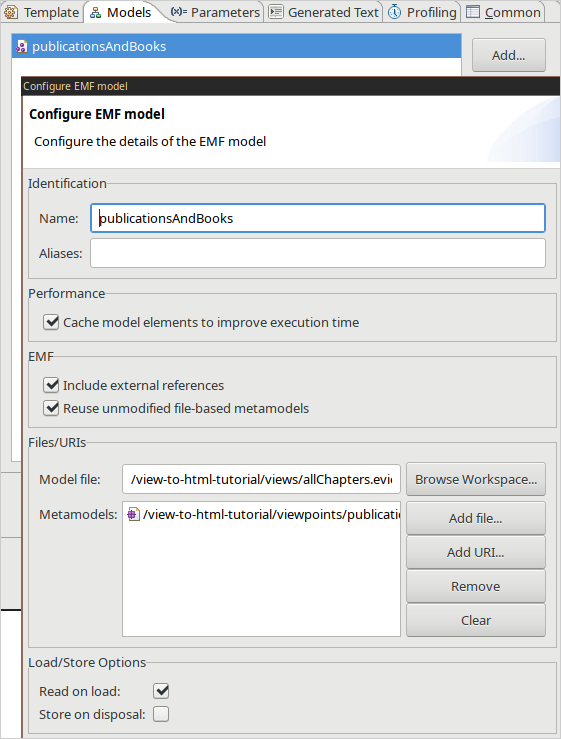

The important part is to use the eview file as Model file, and the eviewpoint file as Metamodels. The configurator may add the namespace URI of the viewpoint in the Metamodels list when you add the eview file. You should remove it, and point to the eviewpoint file instead.

Before we can run this configuration, we need to make a minor change to the eviewpoint file. We add the saveInRegistry option:

contributingMetamodels=publication::../metamodels/Publication.ecore,\
		       book::../metamodels/Book.ecore
weavingModel=publicationsAndBooks.xmi
saveInRegistry

The reason this is necessary is because EGL will load the eview and eviewpoint resources separately, and we need the view to find the created viewpoint at runtime. When opening views in model editors, this option is not necessary since the view will take care of instantiating the viewpoint directly.

Once this is taken care of, we can finally execute the EGL template on our view. After a few seconds, the console should output the line:

Output generated to /view-to-html-tutorial/templates/out.html

The generated HTML should look like this:

<p>
  <i>ATL in Depth</i>, A. Tlanmod, Willy (2022)<br>
  Contents:
  <ol>arst
    <li>Introduction to ATL</li>
    <li>An Example Transformation</li>
    <li>A Couple of Compilers</li>
    <li>ATL Harder</li>
  </ol>
</p>

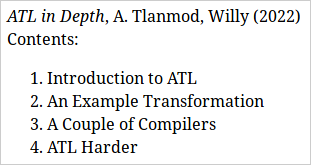

And if we open that file in a web browser, here is the result:

Generating an HTML page from a model can make for more pleasant reports. With the right amount of CSS and JavaScript, you can even have build interactive visualizations from your views. See the traceability-demo in the examples folder for a more involved usage of templates.

Concepts

Views

In EMF Views, views are lightweight (virtual) models that can rely on one or several contributing models. Thus, they allow you to access their contributing models transparently.

There are three ways to create a view:

1. By writing an eview (and an eviewpoint) file.
2. By writing a VPDL file.
3. By using the EMF Views API.

The VPDL method is the fastest for interactive creation, but the eview approach is more flexible. Using the API should be preferred when creating views from Java code.

The MEL DSL lets you create viewpoints easily, but to obtain a view you still need to create a view weaving model.

eview and eviewpoint files

The eview and eviewpoint files respectively describe views and viewpoints.

In Eclipse, the EMF Views plugin installs parsers for these file extensions through the org.eclipse.emf.ecore.extension_parser extension point. This means you are able to open eview and eviewpoint files in standard EMF model editors such as the Sample Ecore Model Editor, or the MoDisco Model Browser.

The syntax of these files follows the text encoding of java.util.Properties. That is, the file is a list of properties as KEY=VALUE pairs, where both KEY and VALUE are strings:

key1=thisisavalue
# a pound begins a line comment
key2=everything to the right of the equals is a value
# Values can span multiple lines by escaping newlines with a backslash
key3=value spanning\
     multiple lines

For eviewpoint files, these are the accepted properties:

contributingMetamodels

Comma-separated list of alias-URI pairs to contributing metamodels. The alias and URI are separated by two colons ::. This key is mandatory.

weavingModel

URI for the viewpoint’s weaving model. This key is optional; if unspecified, the viewpoint will be constructed with an empty weaving model.

saveInRegistry

(Optional). If this property is present, the viewpoint created from the eviewpoint file will be saved in an internal registry, using the eviewpoint file location as a key. This means that eview files pointing to the viewpoint will now attempt to load it from the registry. This is necessary for EMF-based tools that expect a model and a metamodel separately (e.g., EGL).

The value of this property is ignored.

strictEcore

(Optional). If this property is present, the metamodel generated in the viewpoint will be checked with the Ecore diagnostician. Views will usually work even if the viewpoint is an invalid Ecore metamodel, but some modeling tools may be stricter. If this option is enabled, and the viewpoint has errors, loading the viewpoint as a resource will produce an exception and the list of diagnostics will be attached to the resource.

The value of this property is ignored.

URIs are built using org.eclipse.emf.common.util.URI.createURI. This allows you to specify files using the file or platform schemes. Without an explicit scheme, the file one is used by default. Note that relative file paths are resolved relatively to the location of the eviewpoint file.

For metamodels, you can specify either the location of an ecore file with the above schemes, or if the URI begins with http:// it is taken to be the namespace URI of the EPackage and is looked up in the Ecore package registry.

Here is an example of a valid eviewpoint file:

contributingMetamodels=book::../metamodels/Book.ecore,\
                       uml::http://www.eclipse.org/uml2/5.0.0/UML
weavingModel=books-and-uml.xmi

Here the Book.ecore metamodel is loaded through a relative file URI, and the UML metamodel through its namespace URI.

eview files have 4 valid properties:

viewpoint

URI to the eviewpoint file. This key is mandatory.

contributingModels

Comma-separated list of alias-URI pairs to contributing models. The alias and URI are separated by two colons ::. This key is mandatory.

weavingModel

URI to the view’s weaving model. This key conflicts with matchingModel.

matchingModel

URI to a supported matching model. This key conflicts with weavingModel.

Since the purpose of the matching model is to create the weaving model used by the view, you must give exactly one of the keys { matchingModel, weavingModel }.

All file URIs are resolved relatively to the eview file’s location.

Here is an example of a valid eview file:

viewpoint=../viewpoints/booksAndPub.eviewpoint
contributingModels=book::models/book.xmi,publication::../../publication.xmi
matchingModel=booksAndPub.ecl

For a step-by-step guide on creating views with eview files, see Creating a view manually.

VPDL

VPDL, standing for ViewPoint Description Language, is a domain-specific language for easing the creation of views and viewpoints when using EMF Views. The syntax of VPDL is inspired by the syntax of the SQL’s SELECT statement.

This is an overview of the structure of a VPDL file:

create view /* view-name */ as

select // features and new associations

from // contributing metamodels

where // matching rules for new associations

There are three clauses:

select

Specifies which contributing metamodel features to include in the view, and which new associations (if any) to create between models.

To select a feature, you write its dot-separated path:

metamodel . class . feature

where metamodel is the alias given to the metamodel in the from clause. E.g., uml.Component.name will include the name feature of the Component class in the metamodel called uml.

You can select multiple features from the same class by using square brackets: uml.Component[name, role] is equivalent to:

uml.Component.name,
uml.Component.role

Lastly, you can include all features of a class using a wildcard: uml.Component.*.

You create new associations between two classes with a join statement:

metamodel . class1 join metamodel . class2 as name

This will add a virtual association feature named name in class1 with type class2. Note that this does not specify how the association will be populated based on model contents. For that, you have to use the where clause.

The select clause is mandatory. At the very least, you must include one feature (otherwise the view will be empty and you could use an empty weaving model directly instead of writing a VPDL file).

from

Specifies the metamodels contributing to the viewpoint.

namespace-uri as alias

The metamodels are given through their namespace URIs, and an alias must be given and used in the select clause.

This clause is mandatory.

where

Specifies the rules used for populating new associations by matching model elements.

The rules are written in a subset of ECL expressions. The top-level variables s and t will be bound respectively to the source model and target model of the association when creating the view.

This clause is optional.

Here is an example of a VPDL file:

create view threeModelComposition as

select
    togaf.Requirement join reqif.SpecObject as detailedRequirement,
    togaf.Process join bpmn.Process as detailedProcess,

    togaf.Process.isAutomated,
    togaf.Requirement[statementOfRequirement, acceptanceCriteria],
    reqif.SpecObject.type,
    bpmn.Process[isClosed, isExecutable, processType],

    togaf.Element.name,
    togaf.EnterpriseArchitecture.architectures,
    togaf.StrategicArchitecture.strategicElements,
    togaf.BusinessArchitecture.processes,

    reqif.ReqIFContent.specObjects,
    reqif.ReqIF.coreContent,
    reqif.Identifiable[desc, longName],

    bpmn.Definitions[name, rootElements],
    bpmn.CallableElement.name,

from
  'http://www.obeonetwork.org/dsl/togaf/contentfwk/9.0.0' as togaf,
  'http://www.omg.org/spec/BPMN/20100524/MODEL-XMI'       as bpmn,
  'http://www.omg.org/spec/ReqIF/20110401/reqif.xsd'      as reqif,

where s.name = t.name and s.isAutomated = false for detailedProcess,
      t.values.exists(v | v.theValue=s.name)    for detailedRequirement,

The following diagram outlines the VPDL grammar; the full Xtext grammar can be found in the source code.

The tutorial Creating a view with VPDL takes you through creating a VPDL file and using it in Eclipse.

MEL

While VPDL allows you to combine metamodels in the same view, it only allows you to filter classes and features from these metamodels. On the other hand, viewpoint weaving models allow you to add new classes and properties, and modify existing ones, but are harder to specify manually.

MEL is the Metamodel Extension Language, a domain-specific language for creating viewpoints that extends multiple existing metamodels.

Here is an example of a simple MEL file:

import uml from 'http://www.eclipse.org/uml2/5.0.0/UML'

define single_inheritance_uml extending uml {
  modify class uml.Class {
    modify association superClass {
      cardinality 0..1
    }
  }
}

This MEL file defines a new viewpoint, single_inheritance_uml that changes exactly one thing from the original UML: the association Class.superClass now points to at most one Class, instead of many.

The general format of a MEL file is as follows:

import /* metamodel imports */

define /* extension name */ extending /* input metamodels */ {
  /* extensions */
}

In the import clause, the metamodels are imported by their namespace URI (a string) and given an alias:

The alias is used when defining the extension: after the extending keyword, and for giving the full qualified name to classes.

The extensions supported by MEL are:

add class

Adds a new virtual class to the viewpoint.

The new class can extend or generalize any number of classes via the optional keywords specializing and supertyping. Note that specialized or generalized classes may also be virtual classes defined in the current extension.

add class name specializing classes… supertyping classes…

modify class

Open a block to modify the properties or associations of a given class (which may be one created by add class).

modify class name { class-modifications }

The class modifications are:

add property

Adds a property to that class.

add property name : type cardinality

The name and type are mandatory. The type should be one the basic Ecore type (EString, EInt, etc.).

The cardinality is optional and defaults to 1 (meaning the property always has a value).

add association

Adds an association to that class.

add association name : type cardinality

The name and type are mandatory. The type should be the name of a class (which may be one created by add class).

The cardinality is optional and its syntax is:

(0|1|*)..(0|1|*)

You can create a composition relationship instead with the syntax:

add composition name : type cardinality

modify property

Modify an existing property of that class.

modify property name { fields }

The name is mandatory. The allowed fields are:

name

the property name

type

the property type (any Ecore data type)

cardinality

the property cardinality (0 or 1)

Note that you cannot modify the property of a class created by add property. You should set the correct fields in the add property clause instead.

modify association

Modify an existing association of that class.

modify association name { fields }

The name is mandatory. The allowed fields are:

name

the reference name

type

the reference type (any class, including ones created by add class)

cardinality

the reference cardinality (see add association)

relation-type

whether the property is an association or a composition

Note that you cannot modify the reference of a class created by add association or add composition. You should set the correct fields in the add association (or add composition) clause instead.

filter property

Remove a property from that class.

The target property will not appear in the viewpoint created by this extension.

filter property name

The name is mandatory.

Note that you cannot filter a property of a class created by add property. You should just remove the add property clause instead.

filter class

Hide a class from the viewpoint.

The target class will not appear in the viewpoint created by this extension.

filter class name

The name is mandatory, and cannot be the name of class created by add class.

Here is an example of a (nonsensical) MEL program showing most of the constructs above:

import uml from 'http://www.eclipse.org/uml2/5.0.0/UML'
import bpmn from 'http://www.omg.org/spec/BPMN/20100524/MODEL-XMI'

define extension1 extending mm {
  add class X
  add class Y specializing uml.Class, uml.Abstraction
  add class Z supertyping uml.Activity, uml.Action, X
  add class B specializing Y supertyping Z

  modify class X {
    add property foo : EString 0
    add composition ref : X 1..1
    add association ref : X 1..1
  }

  modify class uml.Class {
    add property opt : EString 0
    add property nonOpt : EString 1
    add composition refC : Y 0..*
    add association ref : uml.Action 1..*
  }

  modify class bpmn.Activity {
    modify association default {
      name defaultRenamed
      type X
      cardinality 0..*
      relation-type association
    }
  }

  modify class uml.Behavior {
    modify property isReentrant {
      type EString
      cardinality 0
    }
    filter property isReentrant
  }

  modify class uml.Activity {
    modify property isReadOnly {
      type EBoolean
      cardinality 0
    }
  }
  // a comment
  filter class uml.DataType
}

The following diagrams outline the MEL grammar; the full Xtext grammar can be found in the source code.

Java API

You can construct View and Viewpoint classes directly by invoking their constructors:

Viewpoint(List<EPackage> metamodels)
Viewpoint(List<EPackage> metamodels, WeavingModel wm)

View(Viewpoint v, List<Resource> models)
View(Viewpoint v, List<Resource> models, WeavingModel wm)

If the weaving model argument is not specified, an empty weaving model is used instead (see Viewpoint.emptyWeavingModel).

You can browse the content of the viewpoint using Viewpoint.getRootPackage, and the content of the view using View.getVirtualContents.

Finally, you may also associate these objects to resources, should you want to serialize them into files:

ViewpointResource vpr = new ViewpointResource("my.eviewpoint");
vpr.setResource(viewpoint);
vpr.save(null);

ViewResource vr = new ViewResource("my.eview");
viewResource.setView(view);
viewResource.save(null);

This will save the viewpoint and views to their corresponding files.

See Creating a view programmatically for a guided example on how to use the API.

Weaving models

Weaving models describe what elements are put into viewpoints and views. The following gives the metamodel of weaving models as a class diagram:

We following subsections describe the role of each element. Note that, as weaving models can be used at the metamodel and model levels for building viewpoints and views (respectively), the following description applies to both levels, even though we only use the terms “models” and “views”. For elements that are handled differently by viewpoints and views, we make the distinction explicit.

Weaving model

The WeavingModel is the root model element.

It contains the contributing models and the virtual links, which are modifications made to the models that only appear in the view.

Its name attribute is used as part of the viewpoint’s namespace URI. Views do not make use of the name attribute.

The whitelist flag changes the meaning of the filters. If the whitelist flag is false (the default), then the view will include all the elements of contributing models, unless they are explicitly filtered out. If the whitelist flag is true, then the view will include no element, unless they are explicitly filtered in.

Contributing model

A ContributingModel is a model included in the view.

The purpose of this class is to hold the concrete elements that are targeted by virtual links.

URI always refers to the metamodel namespace URI, both for viewpoint and view weaving models.

Concrete element

A ConcreteElement is an element of a contributing model.

For viewpoints, path is the fully qualified name to the element (not including the metamodel name, since that’s already given by its container ContributingModel). E.g., Component.name would point to the name attribute of the Component class in a given metamodel.

For views, path is the URI returned by Resource.getURIFragment.

A concrete element can further be of two subtypes: ConcreteConcept and ConcreteAssociation. This distinction is useful for virtual links other than filters, where for example the opposite to a virtual associations can only be an association, not just any element.

Virtual link

VirtualLink is the parent class for all modifications made to the model.

All modifications have a name, which is used for the virtual feature name, except for the Filter class where the name is ignored.

Filter

A Filter, depending on the value of WeavingModel.whitelist, includes or excludes an element from the contributing models.

It can only refer to ConcreteElements.

In views, the whitelist flag is always taken to be false. That is, filtered elements are always filtered out. In addition, as filtering individual view elements comes with a performance cost, it is preferable to filter whole features or classes in the viewpoint instead.

Virtual association

A VirtualAssociation is an association that exists only in the view.

It has source and a target, which can be concrete or virtual concepts. Thus, you may create a virtual association between one class of a contributing metamodel and a virtual class that only exists in the view.

The lowerBound and upperBound properties determine the cardinality of the association, just like in Ecore metamodels. If the composition flag is true, the virtual association is a containment. A virtual association can have one opposite association (virtual or not), given by the opposite reference.

Virtual concept

A VirtualConcept is a concept that exists only in the view.

It can subclass or superclass other concepts (virtual or not).

Virtual property

A VirtualProperty is a property that exists only in the view.

It must attach to a parent concept (virtual or not). The optional flag determines its cardinality (1 if false and 0..1 if true). The type attribute describes the primitive type of the property. The following types are supported:

boolean
byte
char
double
float
int
long
short
Date
String

Matching models

A matching model is a more declarative way to create a weaving model for views. Its main purpose is to populate virtual associations based on the content of the contributing models.

In the current implementation, EMF Views can use ECL files to create weaving models. Such files contain one rule for each virtual association. Here is one ECL file with two rules:

rule detailedProcess
match s : ea!Process
with  t : bpmn!Process
{
  compare
  {
    return s.name = t.name;
  }
}

rule detailedRequirement
match s : ea!Requirement
with  t : reqif!SpecObject
{
  compare
  {
    return t.values.exists(v | v.theValue = "s.name");
  }
}

See the ECL documentation for a full syntactic account of the language.

Each rule is used to match the two models it refers to. If the predicate inside the compare clause is true for two model elements, then a virtual association (of the same as the rule’s) will contain an entry for these two elements in the created weaving model.

Here for example the rule detailedProcess will match whenever a model element of the ea!Process class and a model of the bpmn!Process class both have the exact same name. These classes belong respectively to the TOGAF ’content framework’ and BPMN metamodels, as specified by the contributingMetamodels line in an accompanying eviewpoint file. If two elements match, the resulting weaving model will contain an entry in the virtual association detailedProcess from the source element (an ea!Process) to the target element (a bpmn!Process).

This virtual association is then used to populate the view by the View class.

Adding new matching models

You can add new matching engines through the org.atlanmod.emfviews.virtuallinks.delegator extension point. It takes a file extension (e.g., “ecl”) and a class implementing the IVirtualLinksDelegate interface, which has a single method:

WeavingModel createWeavingModel(URI linksDslFile,
                                Map<String, Resource> inputModels)

You can look at EclDelegate for an example implementation of this interface.
